Essential Tips for Verifying HEX Files to flash into Raytac nRF54L15 modules

封面精選圖片_20250808
Hi readers, did you know that Raytac offers a special service exclusively for our customers?
We offer support services: HEX file verification and flashing firmware into modules per customer’s requests.
Compared to the series nRF52 and nRF53's 2 in 1 or 3 in 1 merged hex files, nRF54L15 requires something slightly different. Following are the tips and suggestions.

Before building your own .hex file on Raytac's nRF54L15 modules(Product link), please configure some settings(shown below) in advance.

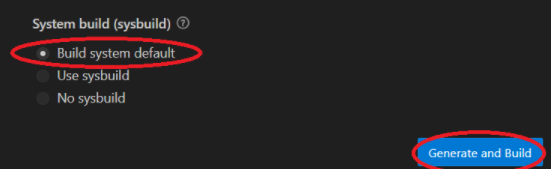

In VS Code:
1. Go to Add Build Configuration
2. Find System Build (sysbuild) ➝ Choose Build System Default
3. Click Generate and Build
圖片1

Starting from NCS v2.8.0 (including later versions), the .hex file can be generated in two different paths.
1. ..\nrf\samples\bluetooth\application-name\build\merged.hex
2. ..\nrf\samples\bluetooth\application-name\build\application-name\zephyr\zephyr.hex


Using the AN54LQ/AN54LV series as an example:
When you provide the programming file (.hex) for production, please ensure that the file is taken from the following path:
1. ..\nrf\samples\bluetooth\application-name\build\merged.hex

And we also do not recommend renaming the merged HEX file due to Nordic suggestions.
For more details behind this suggestion, please refer to the Nordic DevZone link below.
https://devzone.nordicsemi.com/f/nordic-q-a/120313/how-to-modify-the-name-of-the-merged-hex-file

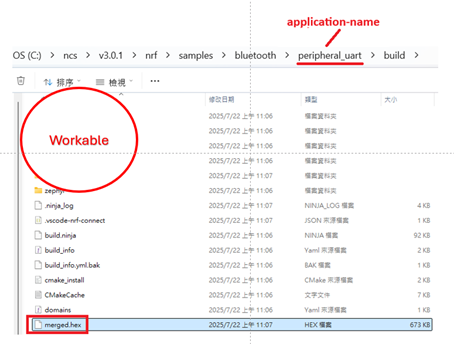

Suggested path:
1. ..\nrf\samples\bluetooth\application-name\build\merged.hex
圖片2

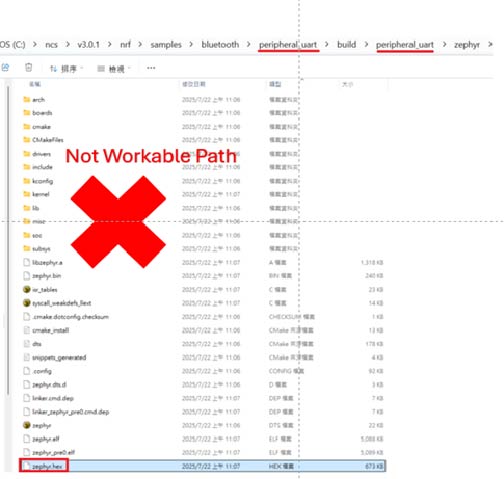

Not recommended path:
2. ..\nrf\samples\bluetooth\application-name\build\application-name\zephyr\zephyr.hex
圖片3

The zephyr.hex file is not recommended to be used for flashing or verification in the production process.
Thank you all for your patience in reading!
Best wishes for your projects - your success is Raytac's success!
